Product description
Introduction
It is made of high-quality 304 stainless steel. It comes in two-piece and three-piece specifications, and the threaded connection design ensures strong adaptability. The core advantage is bidirectional zero leakage. It is equipped with an ISO 5211 direct-connected actuator, enabling quick opening and closing in one second. The manual operation is lightweight and effortless. It is specially designed for water pipe scenarios, with reliable sealing and rapid opening and closing. It is an efficient and practical pipe switch device.
Dimension drawing
Application fields
① Municipal water supply / Civil buildings: Water supply pipelines, connection pipes for water heaters, and control of valves for heating pipes;
② Light industry production: Conduit for transporting neutral media such as purified water, beverages, and chemical additives;
③ Water treatment industry: Fluid control for small water purification equipment and circulating water systems;
④ Other scenarios: Small pumping stations, laboratory pipelines, agricultural irrigation (clean water) pipelines, etc., which require high operational convenience and sealing performance of valves.
After-sales Warranty
Warranty period: 12 months (limited to non-human and non-violation working conditions).
Technical support: 7×24-hour free remote guidance for installation, commissioning, and fault diagnosis.
spare parts supply: Lifelong supply of original factory sealing rings, valve cores, etc., easy-to-wear parts. Respond within 24 hours, and deliver within 48 hours.
It is made of high-quality 304 stainless steel. It comes in two-piece and three-piece specifications, and the threaded connection design ensures strong adaptability. The core advantage is bidirectional zero leakage. It is equipped with an ISO 5211 direct-connected actuator, enabling quick opening and closing in one second. The manual operation is lightweight and effortless. It is specially designed for water pipe scenarios, with reliable sealing and rapid opening and closing. It is an efficient and practical pipe switch device.
Valve Technical Parameters
| Item | Description |
|---|---|
| Nominal Diameter | DN11-94 (mm) |
| Nominal Pressure | 1.6 MPa |
| Connection Type | Threaded |
| Temperature Range | -10~120 (℃) |
| Actuation Mode | Manual |
| Control Mode | On-Off |
| Valve Body | 304/316 Stainless Steel |
| Valve Cover | 304/316 Stainless Steel |
| Sphere | 304/316 Stainless Steel |
| Valve Stem | 304 Stainless Steel |
| Seat Seal | PTFE (Polytetrafluoroethylene) |
| Applicable Medium | Tap water, pure water, oils, chemical media, food-grade materials, etc. |

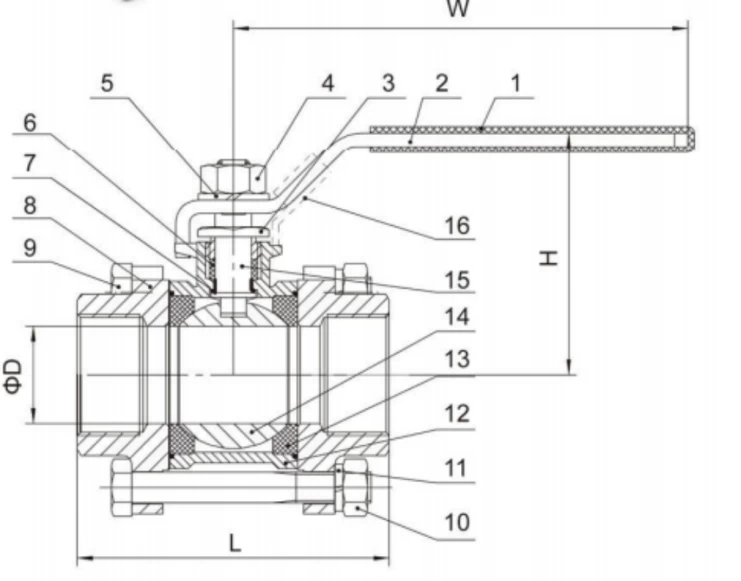

Dimension drawing
Connection dimensions
| in | D | L | H | W |
|---|---|---|---|---|
| 1/4" | 11 | 50 | 48 | 103 |
| 3/8" | 12 | 50 | 48 | 103 |
| 1/2" | 15 | 60 | 52 | 103 |
| 3/4" | 20 | 70 | 61 | 123 |
| 1" | 25 | 80 | 65 | 123 |
| 1-1/4" | 32 | 93 | 79 | 153 |
| 1-1/2" | 38 | 100 | 83 | 153 |
| 2" | 50 | 125 | 97 | 185 |
| 2-1/2" | 64 | 158 | 135 | 343 |
| 3" | 76 | 179 | 144 | 343 |
| 4" | 94 | 223 | 172 | 315 |
Application fields
① Municipal water supply / Civil buildings: Water supply pipelines, connection pipes for water heaters, and control of valves for heating pipes;
② Light industry production: Conduit for transporting neutral media such as purified water, beverages, and chemical additives;
③ Water treatment industry: Fluid control for small water purification equipment and circulating water systems;
④ Other scenarios: Small pumping stations, laboratory pipelines, agricultural irrigation (clean water) pipelines, etc., which require high operational convenience and sealing performance of valves.
After-sales Warranty
Warranty period: 12 months (limited to non-human and non-violation working conditions).
Technical support: 7×24-hour free remote guidance for installation, commissioning, and fault diagnosis.
spare parts supply: Lifelong supply of original factory sealing rings, valve cores, etc., easy-to-wear parts. Respond within 24 hours, and deliver within 48 hours.
You Might Also Like
Stepping wedge gate valve with concealed stem
Steering wedge-type valve with concealed handle. Manual operation. Excellent sealing performance. Compact design.

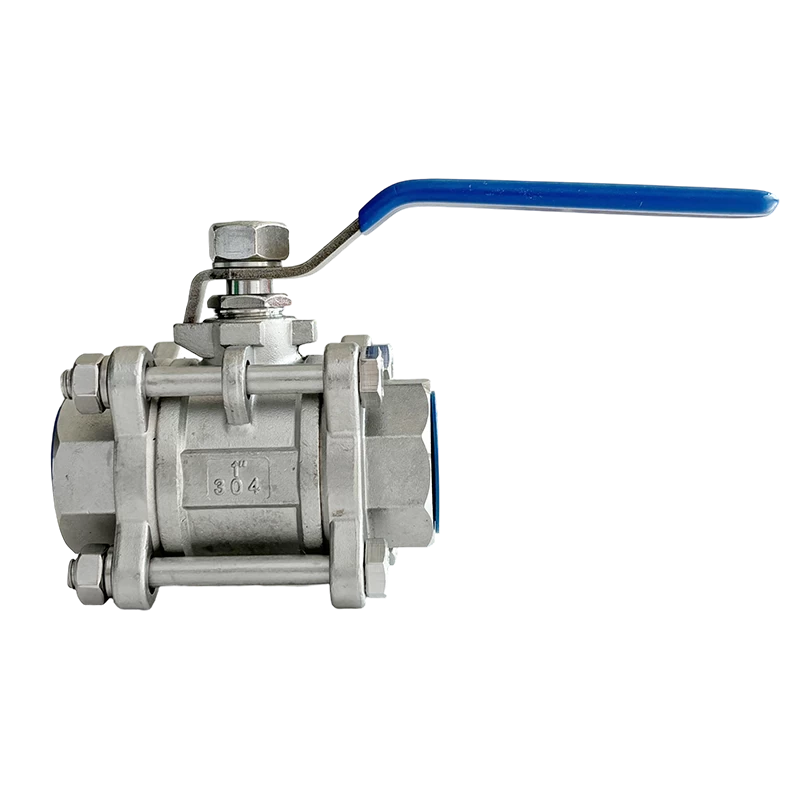

Manual threaded ball valve
