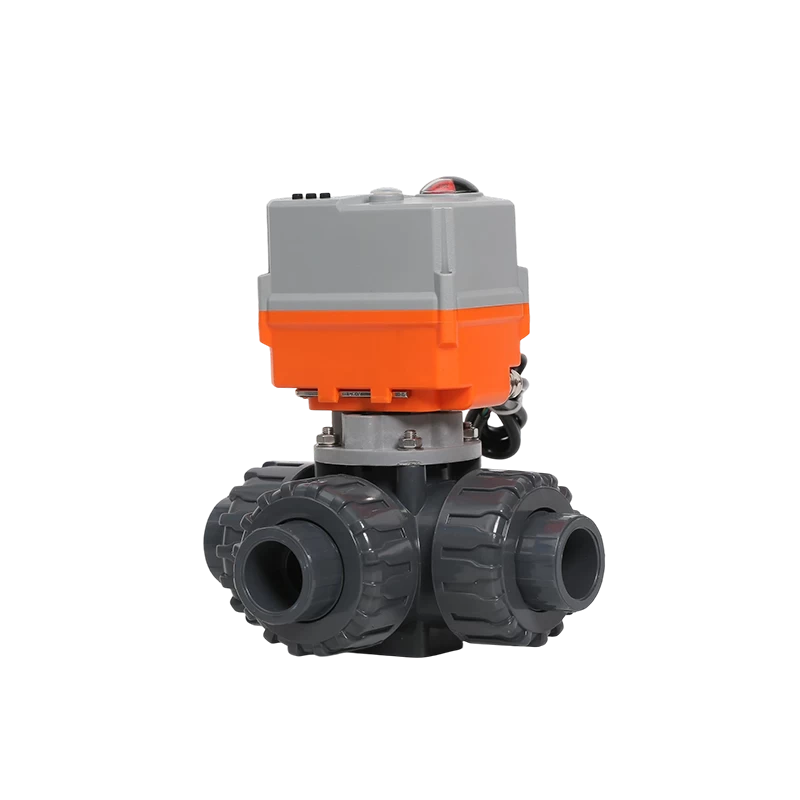

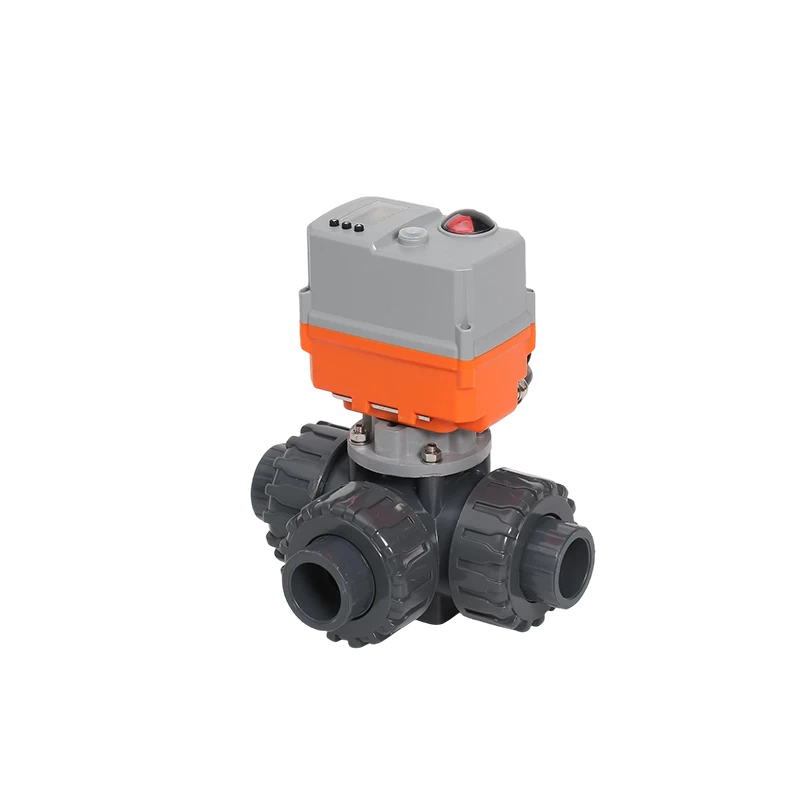

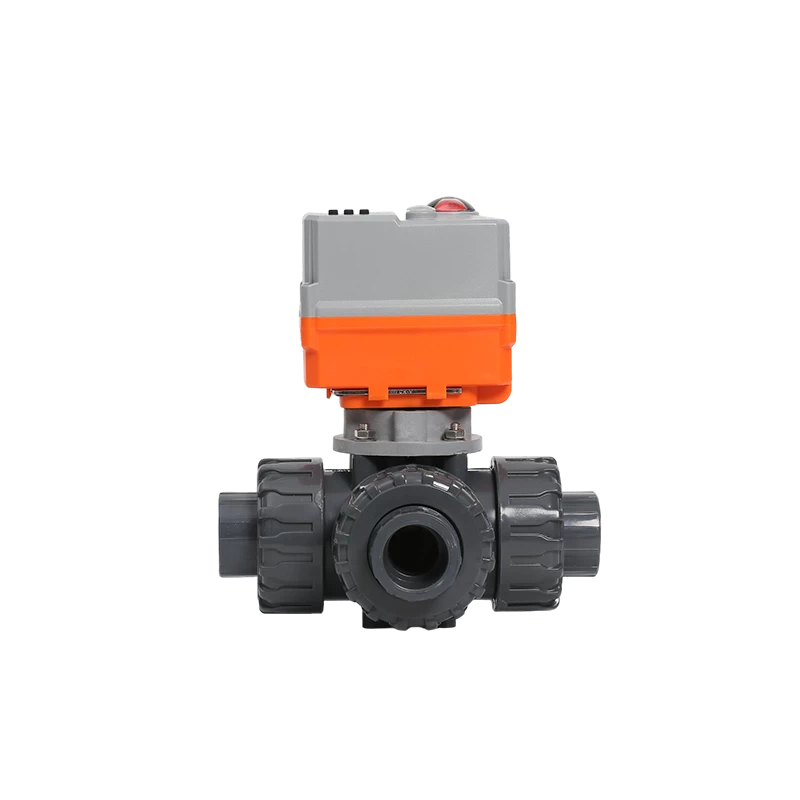

Electric PVC three-way ball valve
- Electric Ball Valve
-
Worldwide delivery capable
1. High corrosion resistance and resistance to aging.
2. Compact size and lightweight design.
3. Smooth flow and rapid response.
4. All-plastic construction for easy disassembly and assembly.
5. T/L-type ball valve core enables diversion, convergence, and flow direction switching with a single valve.
Valve Technical Parameters
Specification | Parameter |
|---|---|
Nominal Diameter | DN15-50 (mm), Customizable |
Nominal Pressure | 1.0-1.6 (MPa) |
Body Material | UPVC, CPVC, PP, PVDF |
Plug Material | UPVC, CPVC, PP, PVDF |
Seal Material | PTFE, EPDM, FKM |
Connection Type | Double-ended live joint |
Control Type | On/off, Modulating |
Medium Temperature | 0~55 (℃) |
Applicable Medium | Corrosive, low-viscosity fluids without hard particles, etc. |
Voltage | AC220V, AC380V, DC12V, DC24V |
DN(mm) | L | L1 | D |
15 | 138 | 20 | 20 |
20 | 160 | 25 | 25 |
25 | 180 | 28 | 32 |
32 | 208 | 32 | 40 |
40 | 240 | 35 | 50 |
50 | 298 | 38 | 63 |
Application fields
1. Water Treatment and Environmental Protection: Divergent/convergent dosing of sodium hypochlorite, PAC, PAM, and other chemicals in water treatment plants.
2. Chemical Processing and Electroplating: Line switching for dilute sulfuric acid, hydrochloric acid, alkali solutions, hydrogen peroxide, and sodium hypochlorite pipelines.
3. Pharmaceuticals and Biotechnology: Purified water, water for injection, CIP/SIP loop tank switching and cleaning.
4. Food and Beverage: Wort oxygenation, yeast addition, CIP recirculation switching.
5. Pulp and Paper/Textiles: Bleaching section calcium hypochlorite, hydrogen peroxide, NaOH pipeline switching.
6. Aquaculture and Agricultural Irrigation: UV bypass for seawater recirculation systems, protein skimmer bypass.
After-sales Warranty
Warranty period: 12 months (limited to non-human and non-violation working conditions).
Technical support: 7×24-hour free remote guidance for installation, commissioning, and fault diagnosis.
spare parts supply: Lifelong supply of original factory sealing rings, valve cores, etc., easy-to-wear parts. Respond within 24 hours, and deliver within 48 hours.
