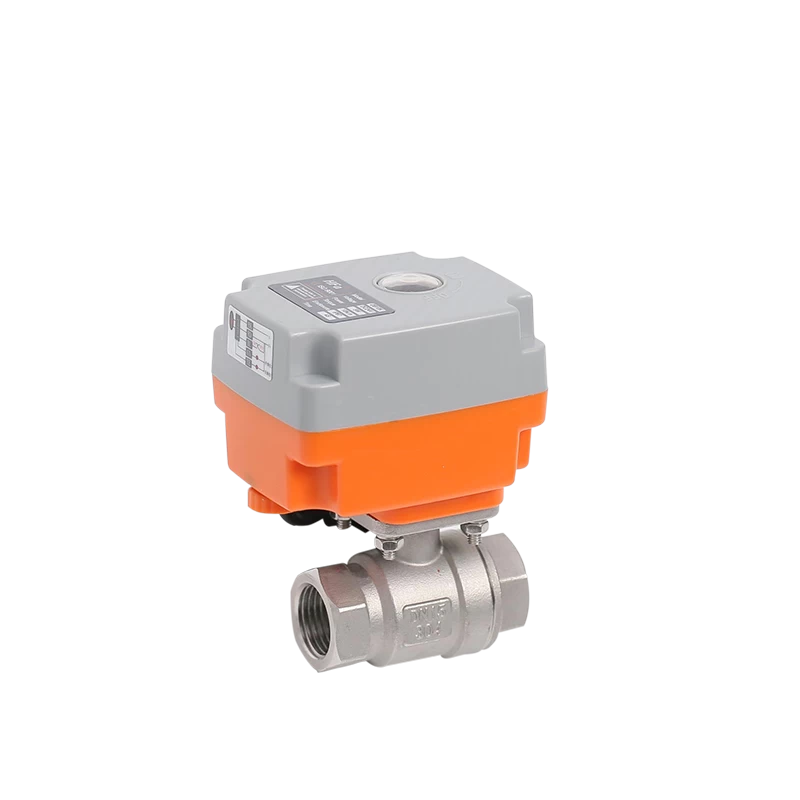

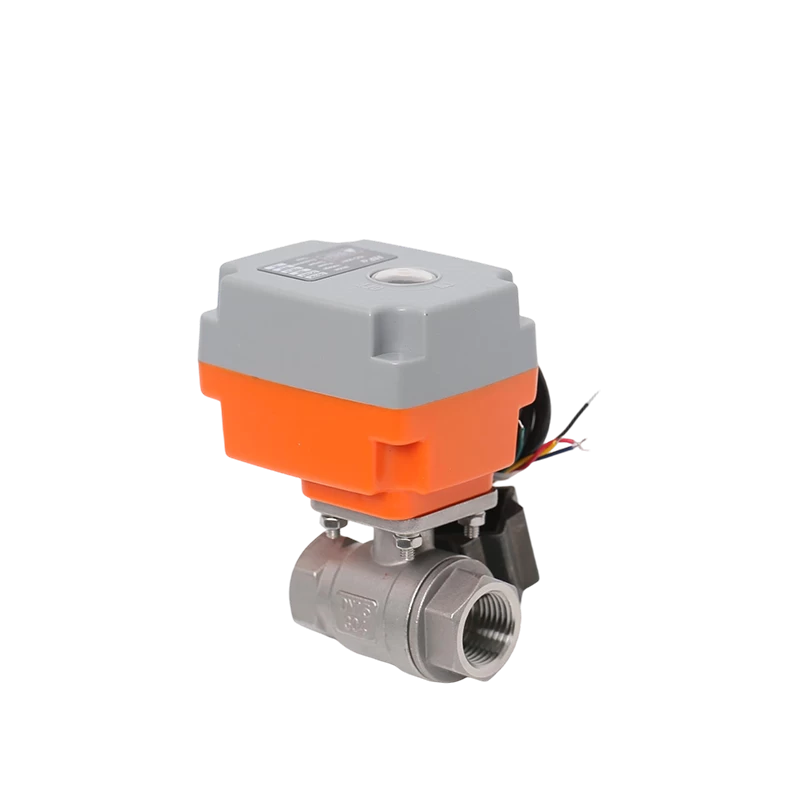

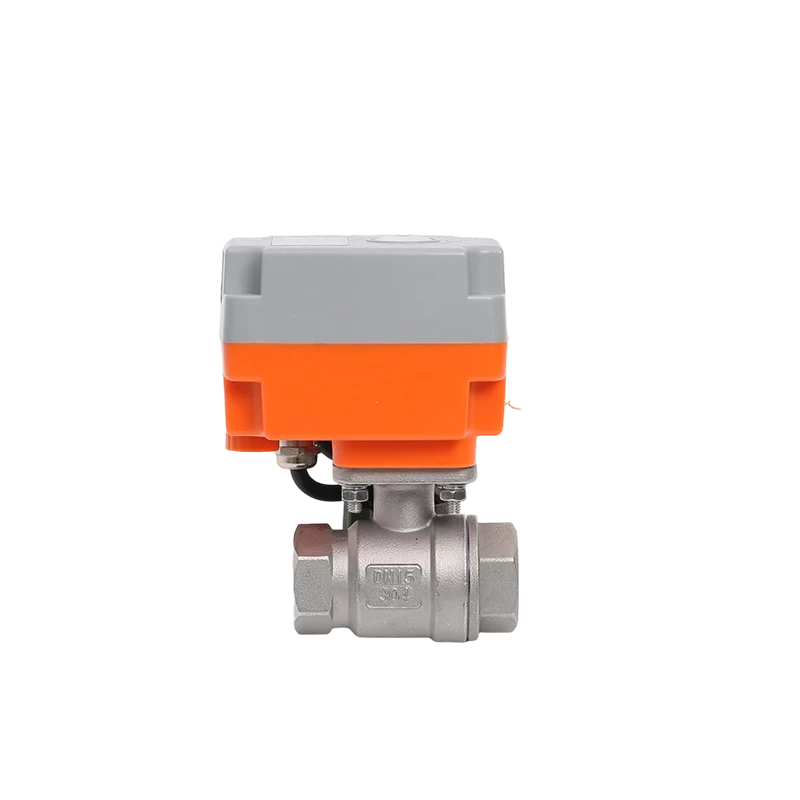

Electric miniature 304 ball valve
- Electric Ball Valve
-
Worldwide delivery capable
Introduction
1. Food-grade 304 valve body, corrosion-resistant and rust-proof.
2. Compact design for space-saving installation.
3. Low power consumption with high torque, battery-powered operation.
Technical Specifications
| Item | Description |
|---|---|
| Nominal Diameter | DN8-25 (mm) / Customizable |
| Nominal Pressure | 1.0-1.6 (MPa) |
| Body Material | Stainless steel 304, 316, 316L |
| Plug Material | Stainless steel 304, 316, 316L |
| Seal Material | PTFE (Ambient Temperature), Special PPL (High Temperature), Metal seal (High Temperature) |
| Connection Type | Internal Thread |
| Control Type | On/off, Modulating |
| Medium Temperature | -20~80 (℃) |
| Applicable Media | Air, water, gases, liquids, and other corrosive media |
| Voltage | AC220V, AC380V, DC12V, DC24V |
| Leakage Rating | GB/T 4213-92 Class A |
| Protection Rating | IP67 (standard), IP68 and Explosion-Proof Exd Ⅱ BT4 Gb (option) |
1. Medical: Hemodialysis machines, oxygen concentrators, disinfectant solution dispensers.
2. Instruments: Chromatographs, samplers, titrators, pure water systems.
3. Food Processing: Coffee machines, beverage dispensers, beer dispensers, ice cream machines.
4. New Energy: Deionized water for fuel cells, microchannel switching for battery cooling.
5. Environmental Protection: Online water quality monitoring, automatic chemical dosing, portable samplers.
6. Agriculture: Fertilizer-water integrated machines, greenhouse micro-sprinklers, drone spraying systems.
After-sales Warranty
Warranty period: 12 months (limited to non-human and non-violation working conditions).
Technical support: 7×24-hour free remote guidance for installation, commissioning, and fault diagnosis.
spare parts supply: Lifelong supply of original factory sealing rings, valve cores, etc., easy-to-wear parts. Respond within 24 hours, and deliver within 48 hours.
