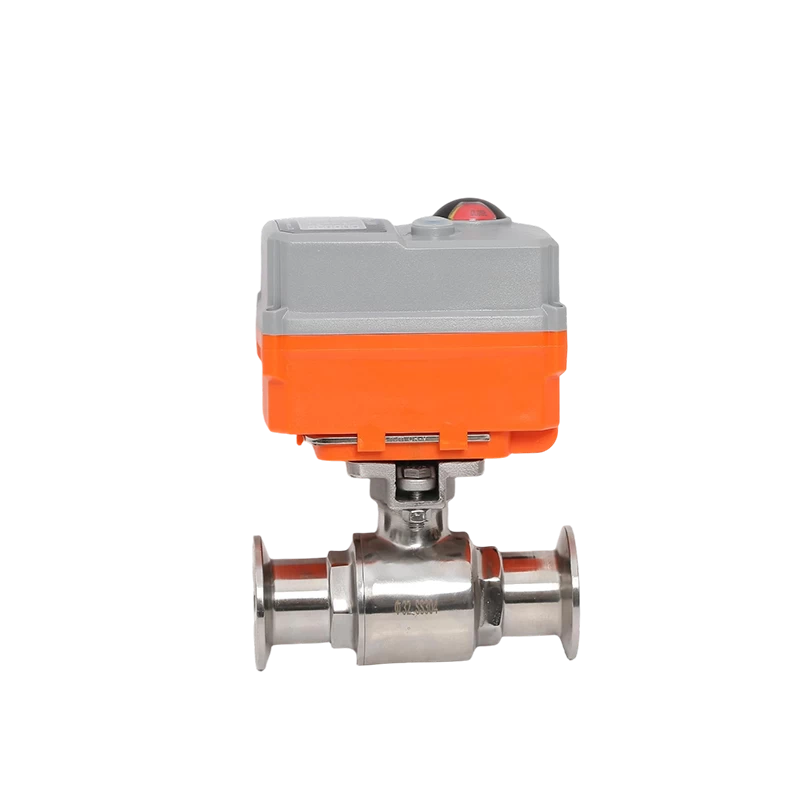

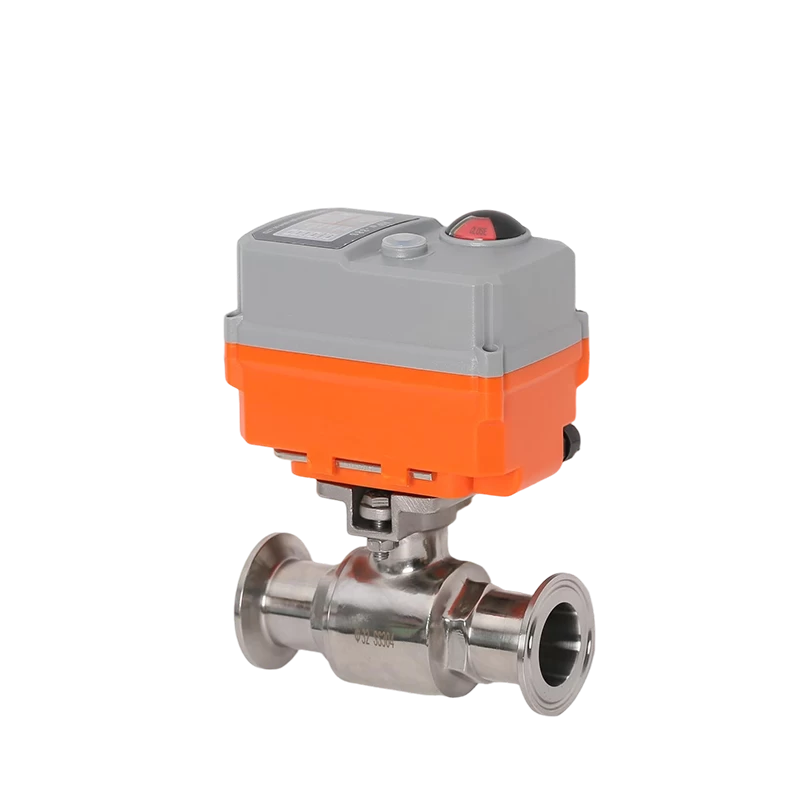

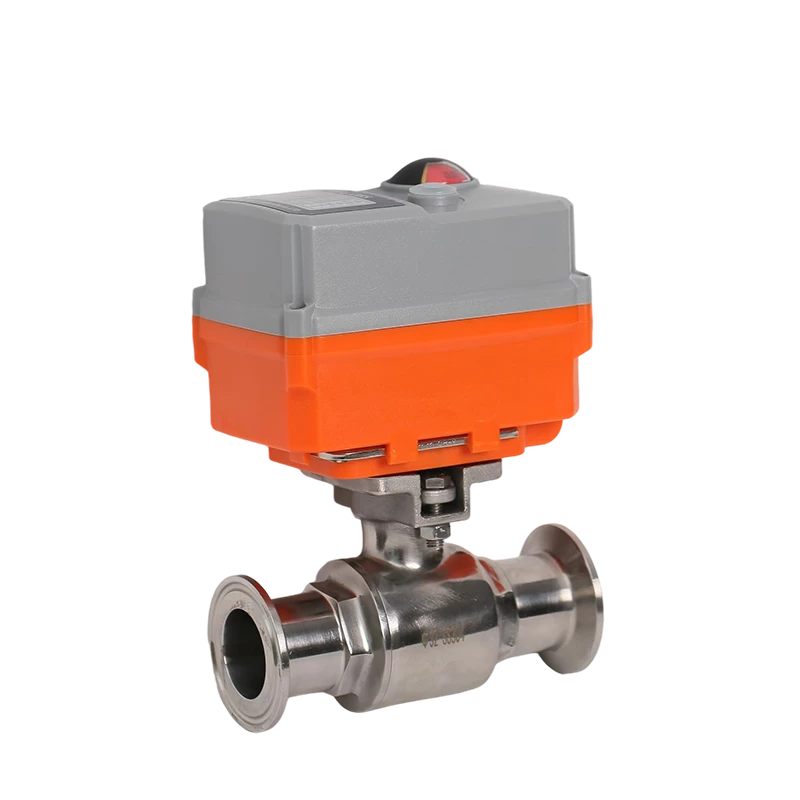

Product description
Introduction
1.Multiple Connection Types: Quick-clamp (Tri-clamp), welding, threaded, and more.
2.Quick Disassembly & Easy Maintenance.
3.High Sealing Performance & Durability.
4.Zero Leakage & Long Service Life.
5.Enables precise remote flow control.
Technical Specifications
| Item | Description |
|---|---|
| Nominal Diameter | DN15-57 (mm), customization supported |
| Nominal Pressure | 1.0-1.6 (MPa) |
| Valve Body Material | Stainless Steel 304, 316, 316L |
| Valve Trim Material | Stainless Steel 304, 316, 316L |
| Seal Material | PTFE (Polytetrafluoroethylene) |
| Connection Type | Clamp Connection |
| Control Method | On-Off Type, Modulating Type |
| Fluid Temperature | -20~180 (℃) |
| Suitable Medium | Water, milk, juice, beer, etc. |
| Voltage | AC220V, AC380V, DC12V, DC24V |
| Leakage Class | GB/T 4213-92 Class A |
| Ingress Protection (IP) Rating | IP67 (standard), IP68 and Explosion-proof Exd Ⅱ C T4 Gb (optional) |
Application fields
After-sales Warranty
Warranty period: 12 months (limited to non-human and non-violation working conditions).
Technical support: 7×24-hour free remote guidance for installation, commissioning, and fault diagnosis.
spare parts supply: Lifelong supply of original factory sealing rings, valve cores, etc., easy-to-wear parts. Respond within 24 hours, and deliver within 48 hours.
1.Food & Beverage: Beverages, beer, dairy products, soy sauce blending
2.Pharmaceutical: WFI (Water for Injection), purified water, CIP/SIP circuits
3.Cosmetics: Purified water, fragrance, emulsion
4.Bioengineering: Fermenter feeding, serum filtration
After-sales Warranty
Warranty period: 12 months (limited to non-human and non-violation working conditions).
Technical support: 7×24-hour free remote guidance for installation, commissioning, and fault diagnosis.
spare parts supply: Lifelong supply of original factory sealing rings, valve cores, etc., easy-to-wear parts. Respond within 24 hours, and deliver within 48 hours.
